Synthetic laboratory
Conduct single-phase tests of 252kV full pole (or 550kV 1/2 pole) 63kA and below, three-phase synthesis tests of 4.5kV-145kV and 40kA, and capacitive current switching tests using current introduction method.

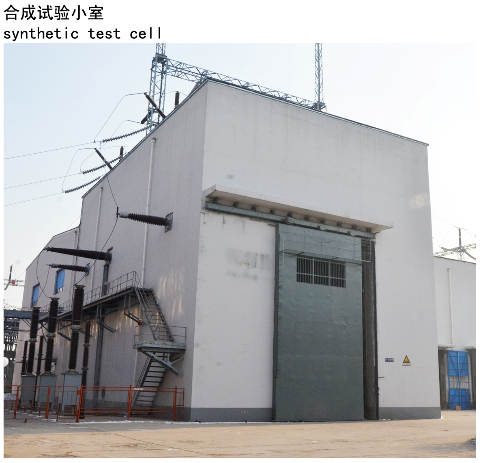

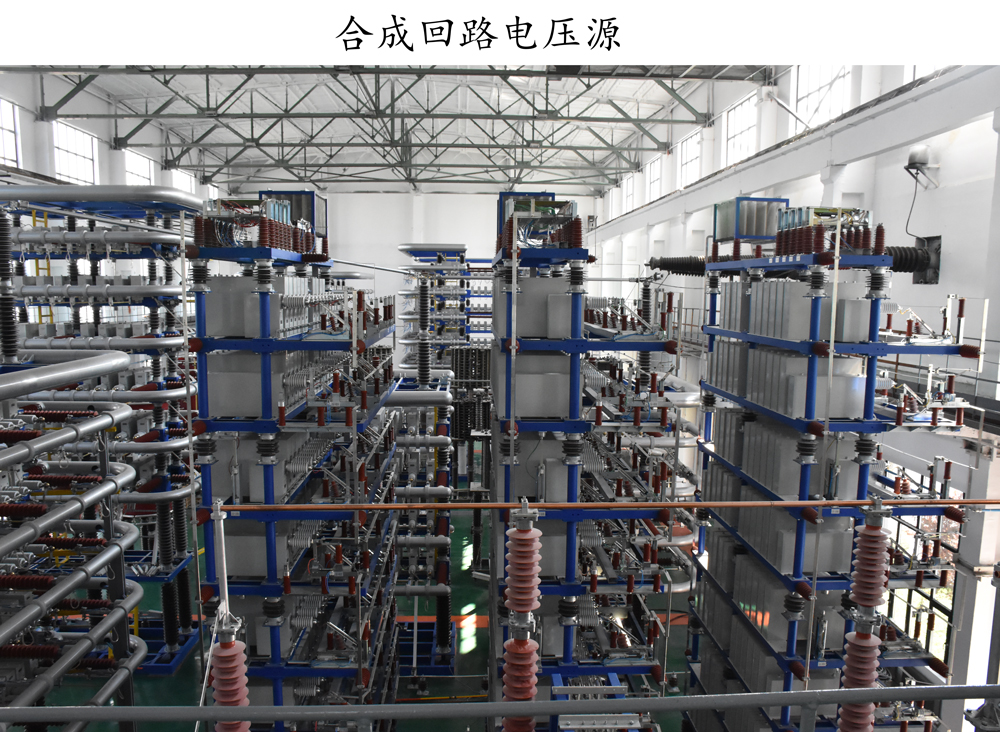

The maximum capacity of the voltage source is 2.5MJ. There is a synthesis test chamber used for single-phase or three-phase synthesis and capacitive current switching tests.
Main measuring equipment: Genesis 16 channel measurement system from LDS company in the UK, with a maximum sampling rate of 100MS/s. The BE256-LE measurement system from NICOLET Corporation in the United States. Using Perception testing software calibrated with STL experimental data generator (TDG). Capable of automatically measuring experimental data.
Fiber optic transmission system: LDS-lsobe5600.
